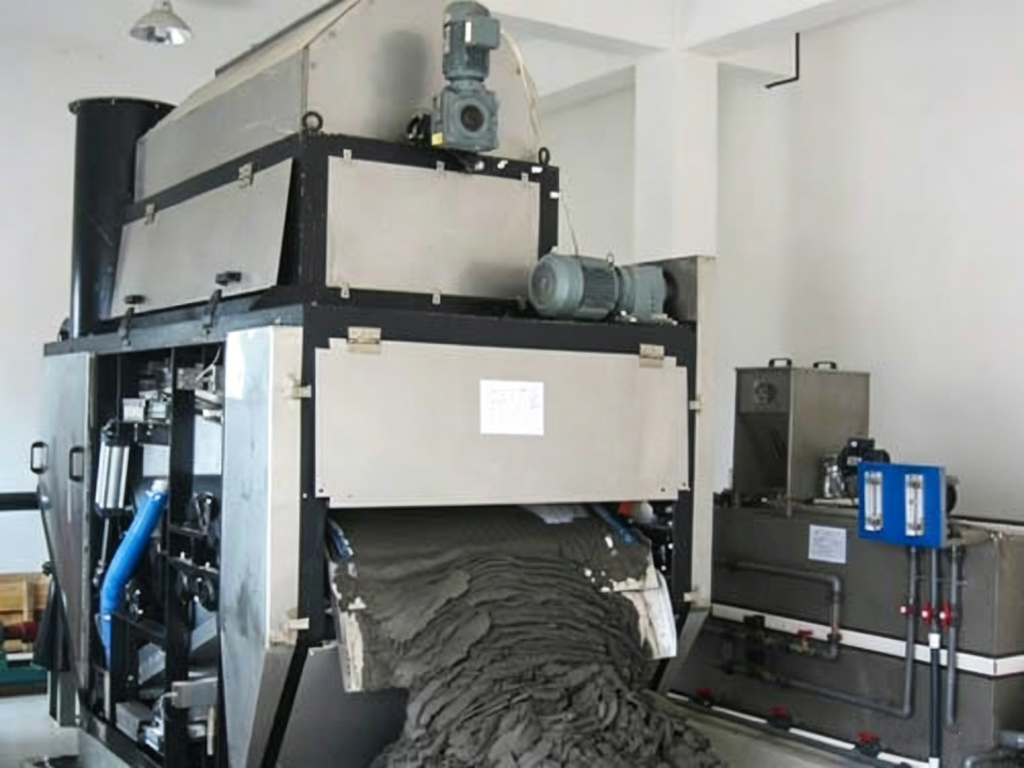

Belt Filter Press for Industrial Sludge Dewatering and Solid-Liquid Separation
The belt filter press offers several key advantages: high pressure, strong dewatering capability, a high degree of automation, and simple operation. The discharged material achieves a moisture content of less than 78%. This equipment is widely used for sludge dewatering in municipal wastewater treatment and across many industries, including textile printing and dyeing, electroplating, papermaking, leather processing, brewing, food processing, coal washing, petrochemicals, chemicals, metallurgy, pharmaceuticals, and ceramics.
How a Belt Filter Press Works
The belt filter press uses a series of rollers and two filter belts to squeeze water out of sludge. The process typically involves three stages. First, gravity drainage removes free water as sludge flows onto the moving belt. Second, a low-pressure wedge zone gradually compresses the sludge, preparing it for higher pressure. Third, high-pressure rollers apply increasing force to extract additional water. The final product is a dry cake that is easy to handle and dispose of.
Key Advantages
High Pressure and Strong Dewatering
The roller arrangement creates progressively higher pressure as sludge moves through the press. This mechanical pressing removes more water than gravity thickening alone. The result is drier cake, which reduces disposal weight and transportation costs.
High Automation and Simple Operation
Modern belt filter presses are equipped with automatic controls for belt tension, tracking, and wash water. Operators can monitor and adjust parameters from a central panel. Automatic belt tracking systems prevent misalignment, reducing downtime. Self-cleaning spray bars keep belts porous, maintaining consistent performance.
Low Discharge Moisture
Achieving discharge moisture below 78% is significant. Drier sludge reduces the volume of material sent to landfills or incinerators. It also lowers fuel consumption if the sludge is dried further or burned.
Application Versatility
The belt filter press handles biological sludge from municipal plants, chemical sludge from industrial processes, fibrous sludge from paper mills, oily sludge from refineries, and inorganic sludge from metal finishing. The same basic design works across these applications, with adjustments to belt type, roller configuration, and chemical conditioning.
Maintenance Considerations
Regular belt cleaning, roller bearing lubrication, and tracking sensor calibration are required. Belt life typically ranges from 2,000 to 5,000 operating hours, depending on sludge abrasiveness and cleaning effectiveness.
