Conveyor Idlers: Types, Selection, and Troubleshooting for Heavy-Duty Belt Systems

A conveyor idler isn’t just a spinning tube under a belt. It’s the component that decides whether your belt tracks straight or wanders, whether your bearings last three years or three months, and whether your maintenance team spends its shift fixing problems or preventing them.

Get the idler type wrong, and the belt pays for it—edge damage, spillage, seized rolls, and unplanned downtime that eats into production targets. Get it right, and the idler becomes the quiet workhorse that runs for tens of thousands of hours with minimal attention.

Haihui engineers emphasize roll concentricity, seal integrity, and load class matching as the baseline for dependable conveyor idler performance. Drawing on our experience manufacturing idlers for bulk material handling across cement, power, mining, port, and steel industries, we build idlers that keep belts running straight and smooth.

Harmonious Highlights for Conveyor Idlers

➔ Type Selection: Carrying, return, impact, training, and spiral idlers each solve a different problem—pick by position and material.

➔ Roll Surface Logic: Steel for dry abrasives, rubber disc for sticky loads, spiral for self-cleaning return runs.

➔ Bearing & Seal Design: Labyrinth seals with regreasable or factory-sealed bearings determine idler life in dust, moisture, and corrosive conditions.

➔ Load Class Discipline: CEMA Class B through F idlers match load capacity to belt width and material weight—undersizing guarantees premature failure.

What Are the Main Types of Conveyor Idlers?

Conveyor idlers come in several configurations, each designed for a specific position and function on the belt line. Choosing the wrong type for the job is one of the most common causes of premature failure.

Carrying Idlers

Carrying idlers support the loaded belt on the carrying side. They are typically arranged in troughing sets of three rolls, forming a trough shape that contains the material.

Key characteristics:

• Trough angles of 20°, 35°, or 45° depending on material and capacity
• Roll diameters from 89 mm to 194 mm
• CEMA Class B through F based on load

Typical applications:

• Coal, ore, aggregate on the carrying side
• Cement clinker and raw meal
• Grain and fertilizer

Return Idlers

Return idlers support the empty belt on the return side. They are typically single flat rolls or V-return configurations.

Key characteristics:

• Flat roll or V-return (two rolls at an angle)
• Normal spacing of 10 feet (approximately 3 meters)
• Diameters from 89 mm to 194 mm

Typical applications:

• Return belt support on all conveyor types
• V-return for wider belts to improve tracking

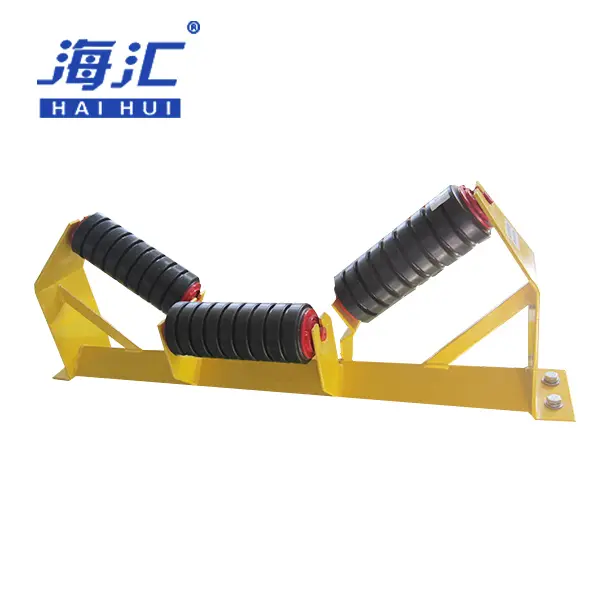

Impact Idlers

Impact idlers are installed at loading points where material falls onto the belt. They absorb the impact energy and protect the belt from damage.

Key characteristics:

• Rubber discs or rubber rings absorb shock
• Minimum 6-inch diameter recommended
• Spacing at 1-foot intervals to maximize belt protection

Typical applications:

• Transfer points under crushers
• Loading zones at the head of the conveyor
• Any point where material drop height exceeds 1 meter

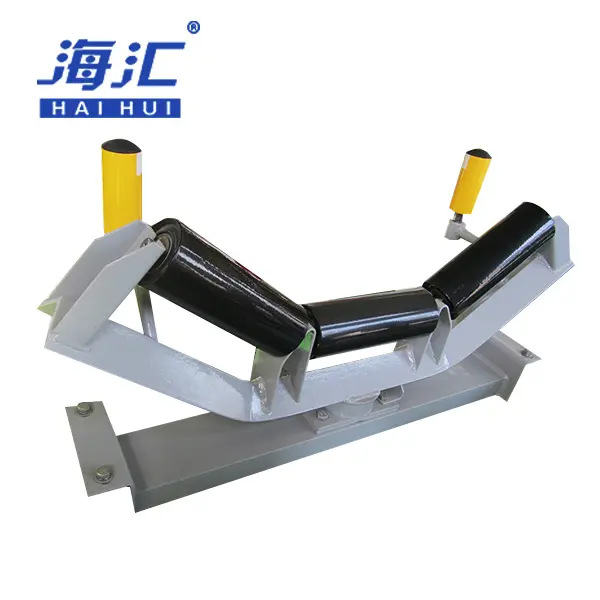

Training Idlers

Training idlers (also called self-aligning idlers) correct belt mistracking. They pivot about a vertical axis when the belt drifts, steering it back to center.

Key characteristics:

• Pivot mechanism with vertical axis
• Guide rollers or edge rollers activate the pivot
• Available for carrying and return positions

Typical applications:

• Conveyors prone to mistracking
• Long overland conveyors
• Reversing conveyors (with diamond pattern)

Spiral Idlers

Spiral idlers have a helical steel strip wrapped around the roll surface. Material that would otherwise build up passes through the spiral gaps.

Key characteristics:

• Self-cleaning action
• One-directional belt travel only
• Effective in wet, sticky, or corrosive environments

Typical applications:

• Return side with sticky materials
• Cement, clay, fertilizer handling

Which Conveyor Idler Roll Surface Suits Your Material?

The roll surface determines how well the idler supports the belt and whether material buildup becomes a problem. The wrong surface accelerates wear on both the idler and the belt.

Spiral return idlers are unique in that the spiral construction minimizes belt fleet and damage to the return belt due to material build-up on the idler rolls. They can be used for belt travel in one direction only.

For belts carrying wet or sticky materials like cement, clay, or fertilizer, a spiral or rubber disc idler significantly reduces maintenance frequency compared to plain steel.

Bearing and Seal Design: The Life-Determining Factor

Bearing failure is the most common reason a conveyor idler is pulled from service. The seal design determines how long the bearing lasts.

Regreasable idlers use a labyrinth and outer shield design, allowing periodic regreasing to flush contaminants. Factory-sealed idlers use the same seal design with a solid shaft and are a viable economic alternative where periodic regreasing will not be provided.

For mining and cement applications with high dust loads, a multi-passage labyrinth seal is the minimum specification. For washdown or corrosive environments, consider contact seals or combined labyrinth-contact seals.

Troubleshooting Common Conveyor Idler Problems

Even well-specified idlers can develop problems. Here’s how to diagnose and fix the most common issues.

Idler Seizure

Symptoms: Idler does not rotate; flat spot worn on the roll; belt drag increases.

Causes:

• Bearing failure from contamination or lack of lubrication
• Seal failure allowing dust ingress
• Overload beyond the idler’s rated capacity

Fixes:

• Replace the seized idler immediately to prevent belt damage
• Check seal type and upgrade if contamination is the root cause
• Verify load class matches actual load

Belt Mistracking at Idler Sets

Symptoms: Belt runs to one side; edge wear; material spillage.

Causes:

• Idler frame not perpendicular to belt centerline
• Uneven roll heights in the troughing set
• Material buildup on idler rolls

Fixes:

• Realign the idler frame
• Replace worn or damaged rolls in the set
• Install training idlers or spiral idlers for sticky materials

Excessive Idler Noise

Symptoms: Squealing, grinding, or rattling from the idler.

Causes:

• Dry bearing
• Contaminated bearing
• Loose shaft or mounting

Fixes:

• Regrease if the idler is regreasable
• Replace if the bearing is damaged
• Check mounting hardware and tighten

Idler Roll Wear

Symptoms: Flat spots, grooving, or uneven wear on the roll surface.

Causes:

• Abrasive material
• Belt slip
• Misalignment causing concentrated load

Fixes:

• Replace worn idlers
• Upgrade to abrasion-resistant roll surface
• Correct belt alignment

Conveyor Idler Specifications at Haihui

Haihui Environmental Protection Equipment Co., Ltd. is a manufacturer of belt conveyor idlers, pulleys, and structural components based in Rizhao, Shandong, China. The company operates 12 intelligent production workshops with an annual output capacity of 15,000 sets of equipment and holds 168 authorized patents, including 15 invention patents.

Product scope: carrying idlers, return idlers, impact idlers, spiral idlers, rubber disc idlers, and complete idler assemblies for belt conveyors. Belt widths from 400 mm to 2,400 mm; roller diameters from 54 mm to 219 mm. Materials include Q235B carbon steel and custom alloy steels for high-tension applications.

Quality systems: ISO 9001, ISO 14001, ISO 45001, and ISO 50001 certified. Products are manufactured to CEMA, AS, DIN, ISO, and GB standards.

Export markets: Products are exported to the United States, Russia, Canada, Australia, Egypt, South America, the Middle East, and Southeast Asia.

Service capability: Professional sales team with 24-hour response, sample delivery in 1–2 days, OEM customization for products, logos, and packaging, and small-quantity order acceptance for urgent requirements.

FAQ about Conveyor Idlers

Q: What is a conveyor idler?

A: A conveyor idler is a rotating component that supports the belt and the material being conveyed. Carrying idlers support the loaded belt on the carrying side. Return idlers support the empty belt on the return side.

Q: What are the main types of conveyor idlers?

A: The main types are carrying idlers, return idlers, impact idlers, training idlers, and spiral idlers. Each type serves a specific position and function on the belt line.

Q: What is the difference between a carrying idler and a return idler?

A: Carrying idlers support the belt and material on the top side of the conveyor. Return idlers support the empty belt on the bottom side. CEMA Standard 502 defines dimensional and selection guidelines for both types.

Q: How do I choose the right CEMA idler class?

A: CEMA idler classes run from B (light-duty) through F (super heavy-duty). Selection depends on calculated idler load, belt width, material weight, and operating conditions. Undersizing the idler class leads to premature bearing failure.

Q: What is the normal spacing for return idlers?

A: Normal spacing for return idlers is 10 feet (approximately 3 meters). Impact idlers should be at least 6-inch diameter and spaced at 1-foot intervals to maximize belt protection.

Q: What is the difference between regreasable and factory-sealed idlers?

A: Regreasable idlers use a labyrinth and outer shield design, allowing periodic regreasing to flush contaminants. Factory-sealed idlers use the same seal design with a solid shaft and are a viable economic alternative where periodic regreasing will not be provided.

Q: When should I use spiral idlers instead of plain steel idlers?

A: Spiral idlers are self-cleaning and suit sticky, wet, or corrosive materials. They are one-directional only and should not be used on reversing conveyors.

Q: What shaft materials are used for conveyor idlers?

A: Common shaft materials include 20# steel, 40# steel, and stainless steel. Material selection depends on load, corrosion exposure, and maintenance requirements.

Q: What is the typical service life of a conveyor idler?

A: With proper specification and maintenance, a conveyor idler can last 20,000 to 50,000 hours. Sealed labyrinth bearings extend life in dusty or wet conditions.

Q: Does Haihui manufacture conveyor idlers for all conveyor applications?

A: Haihui manufactures conveyor idlers for heavy-duty industrial conveyors in mining, cement, steel, power, port, chemical, and paper industries. We do not supply portable or light-duty conveyors used in warehouses or retail settings.

References

1. CEMA Standard 502-2004 – Bulk Material Belt Conveyor Troughing and Return Idlers: Selection and Dimensions. Conveyor Equipment Manufacturers Association.
2. MT/T 821-2006 – Belt conveyor for coal mines — Idlers — Technical specification. National Mine Safety Administration.
3. Regal Rexnord – Rex Belt Conveyor Idlers and Components: seal features, idler types, and load ratings.
4. Rexnord – Rex Idlers: Return idlers, spiral idlers, disc idlers, and belt training idlers.
5. Haihui Environmental Protection Equipment Co., Ltd. – Steel Carry Trough Idler Roller product specifications: belt width 400-2400 mm, roller diameter 54-219 mm, Q235B carbon steel.
6. Haihui Environmental Protection Equipment Co., Ltd. – High Precision Industrial Conveyor Roller with Sealed Bearing: ISO 9001 certified.
7. Haihui Group – Company profile: ISO9001, ISO14001, ISO45001, ISO50001 certified.
8. Rizhao Daily – Haihui Environmental overseas orders grow, production capacity utilization exceeds 95%.
